XYH-P01 PREPREG (UL ANSI:FR-4.0)
環氧玻(bo)纖布半固化片

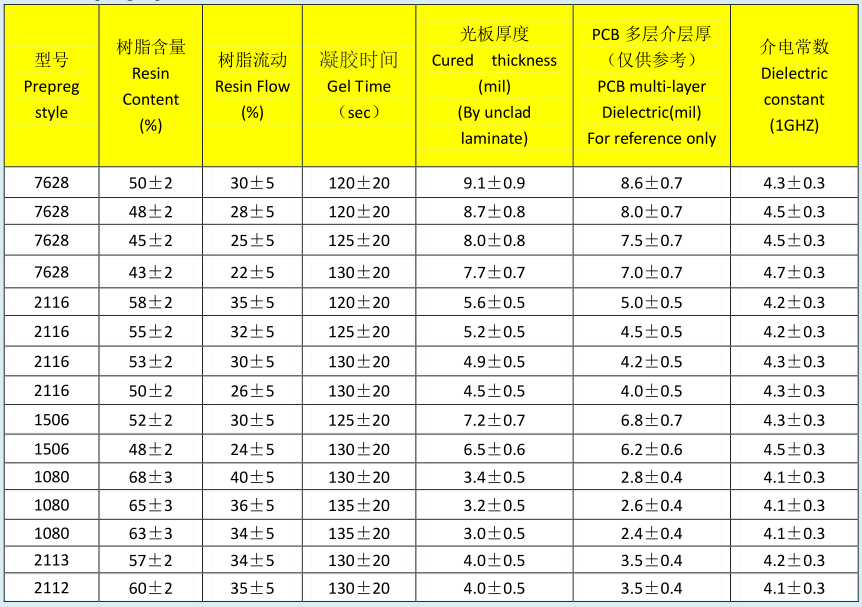

PP 規格(ge) Prepreg specifications
以上為我司常規(gui)規(gui)格,可根(gen)據客戶要求生產
The above is the regular specifications of our company, which can be produced according to the customer's
requirements
儲存條件 Storage Condition
■在溫度小于 20℃，濕度小于 50%可存放 90 天；小于 5℃條件下可存放 180 天。
20℃, 50%RH for90 days ；max 5℃ for 180 days.
壓合概論 Lamination Overview
■PP 應在堆疊室內進行，避免吸濕。
Stacks must be prepared in lay-up room to avoid moisture absorption.
■疊合好的 PP 與芯板壓合開始時建議最小保持 60 分鐘的抽真空狀態。
Stacks with the core and prepreg is recommended to use the vacuum process for 60min when being heated.

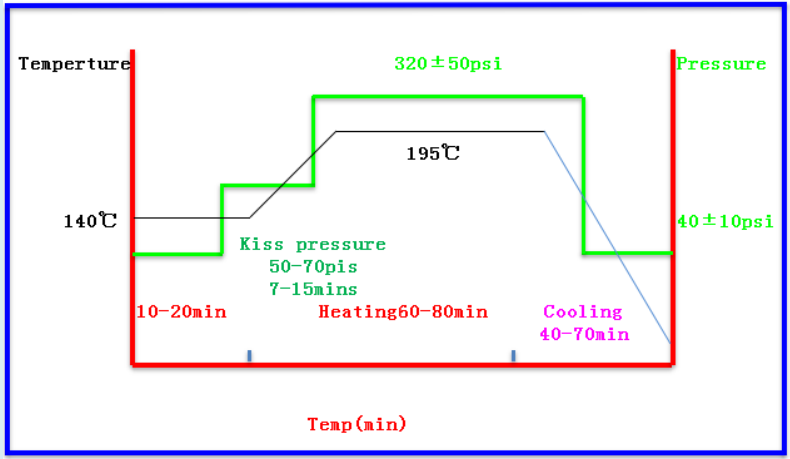

建議壓合條件
Recommended Press Cycle
升溫過程 ■ Heating
a. 溫度范圍為 80-120℃ a.Temperature Range=80-120℃
b. 升溫速率為 1.4-2.5℃/ 分鐘 b. Rate:1.4—2.5℃/min
注意：這些數值僅供參考，當機器和材料結構不同時這些值可(ke)能做調整
Note: these values are reference only they may change depending on machine and material structure
■ 為使樹脂固化完全，料溫在 170-180 度最小保持 30 分鐘
Temperature of material in 170-180℃ must be held for at least 30mins to make the epoxy solidify
completely.
■ 為避免板彎翹，冷壓時材料在 100℃以上時冷卻速率保持在 2.5℃/min 以下。
Cooling rate of material should be kept under 2.5℃/min when the temperature of material is over
100℃,in order to avoid introducing twist.
