XYH-C02(ANSI:FR-4.0)
覆銅箔非阻燃環氧玻纖布基層壓板
特 點
■環氧樹脂專為更高的 UV-Blocking，更好的尺寸穩定性與通孔能力而設計。
■低吸水性、UV-block 與 AOI 兼容、 最低 UL94 要求：HB
■優良的耐熱性能、機械性能、電性能、化學性能
■符合 IPC-4101/20 的規范要求
Features
■Tetra-functional epoxy is designed for a higher UV blocking, better dimensional stability and through
hole reliability
■Lower water absorption、UV Blocking and AOI compatible、UL 94 HB
■Excellent Mechanical、electrical And Chemical Properties
■Meet the specification requirements of IPC-4101/20

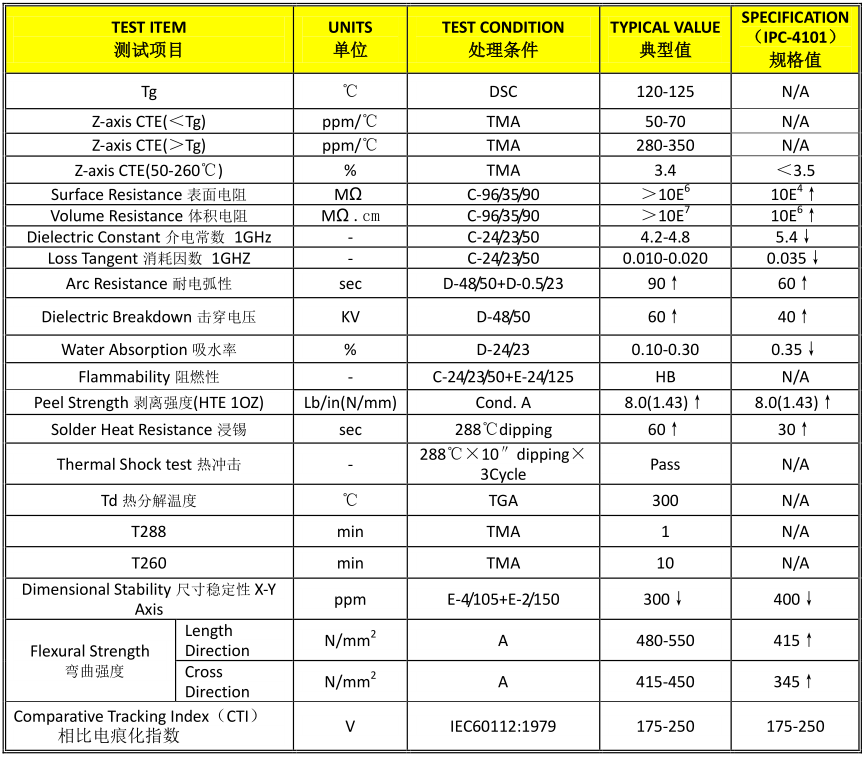

一般性能 General Properties
Remarks 備注：
Typical Values For Reference only，Specimen Thickness：1.5mm 1/1
典型值只作參考，樣品厚度：1.5mm 1/1
A=Keep the specimen originally without any process 保持原樣，不作處理
C=Temperature and humidity conditioning 在恒溫恒濕的空氣中處理
D=Immersing in distilled water with temperature control 浸在恒溫的水中處理
E=Temperature conditioning 在恒溫(wen)的空(kong)氣(qi)中處理
應用領域 Applications
■家(jia)用電(dian)器(qi)、顯(xian)示器(qi)、電(dian)源基板、鍵盤(pan)儀器(qi)儀表、游(you)戲機(ji)等(deng) ■Home appliances, monitors, power boards, keyboards,instrumentation, game consoles, etc.

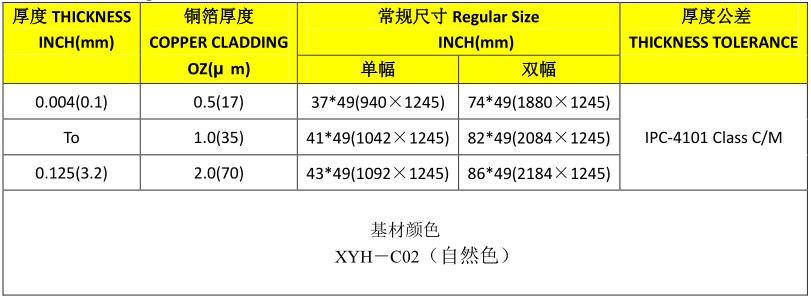

采購信息 Purchasing Information
備注
1)可根據客戶要求提供其它尺寸和厚度；
2)以上圖表僅供參考；
3)版本更新恕不另行通知。
Note
1)Other sheet size and thickness could be available upon request.
2)Speciality chart for reference only.
3)Version updates without notice.
基板存放與儲存
■基板平放在干燥環境中
Laminate Handling and Storage
■Laminate should be stored in a dry environment and always stored flat.
